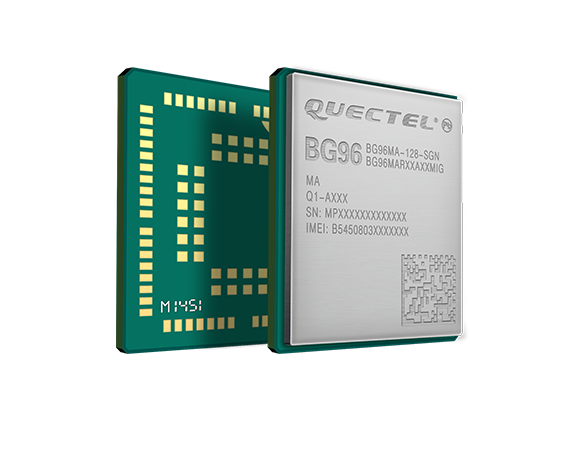

BG96 is a series of LTE Cat.M1/Cat.NB1/EGPRS module offering a maximum data rate of 375kbps downlink and uplink. It features ultra-low power consumption, and provides pin-to-pin compatibility with Quectel LTE module EG91/EG95, Cat.NB1 (NB-IoT) module BC95, UMTS/HSPA module UG95/UG96 and GSM/GPRS module M95.

With a cost-effective SMT form factor of 22.5mm × 26.5mm × 2.3mm and high integration level, BG96 enables integrators and developers to easily design their applications and take advantage from the module’s low power consumption and mechanical intensity. Its advanced LGA package allows fully automated manufacturing for high-volume applications.

A rich set of Internet protocols, industry-standard interfaces (USB/UART/I2C/Status Indicator) and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux and Android) extend the applicability of the module to a wide range of M2M applications such as wireless POS, smart metering, tracking, etc.

Key Benefits

● LTE Cat.M1 & Cat.NB1 & EGPRS module with ultra-low power consumption
● Compact SMT form factor ideal for size-constrained applications with tight space
● Support powerful ThreadX which can host customers’ applications
● Easy drop-in migration to GSM/GPRS/HSPA/LTE modules
● Super slim profile in LGA package
● Fast time-to-market: Reference designs, evaluation tools and timely technical support minimize design-in time and development efforts
● Robust mounting and interfaces
